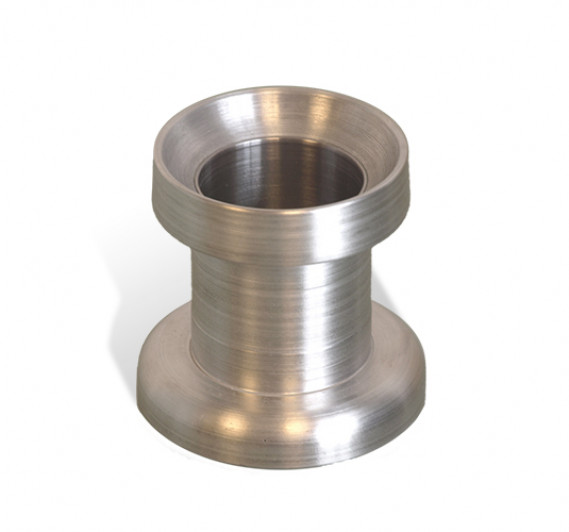

Star Plunger for Type B/F/N
For Ring Donuts with a star shape around the center hole.
The Star plunger makes Ring donuts and 'Old Fashioned' donuts, similar to the Plain plunger.
Should you choose the Star plunger or a Plain'plunger? The difference between them is in the center Hole. The Plain plunger is a bit wacky and unpredictable, and makes center holes with random shapes. The Star plunger produces a hole that's generally rounder, with a Star pattern around it. So it's up to you!
- You will need a cylinder of the same size as your plunger.
- If you have two plungers of the same size, you only need one cylinder.
- 'Old Fashioned' donuts require Old Fashioned donut mix.
Plunger sizes, diameter (inches)
1-1/2, 1-5/8, 1-3/4, 1-7/8, or 2
Plunger sizes, diameter (mm)
38.1, 41.3, 44.5, 47.6 or 50.8
Part Numbers for Type B and Type F
See below LEFT
Part Numbers for Type N
See below RIGHT
Part numbers shown at right are for Type B and Type F plungers and cylinders only! Type B and F are used with Open Kettle fryers.
| Size (diameter) | Part # (Plunger) | Part # (Cylinder) |
|---|---|---|
| 1½ inches (38.1 mm) | 7SC-SSx1-1/2 | 0035SSAx1-1/2 |
| 1⅝ inches (41.3 mm) | 7SC-SSx1-5/8 | 0035SSAx1-5/8 |
| 1¾ inches (44.5 mm) | 7SC-SSx1-3/4 | 0035SSAx1-3/4 |
| 1⅞ inches (47.6 mm) | 7SC-SSx1-7/8 | 0035SSBx1-7/8 |
| 2 inches (50.8 mm) | 7SC-SSx2 | 0035SSBx2 |
Smaller and larger sizes may be available for special order.
Part numbers shown at right are for Type N plungers and cylinders only! Type N depositors are used with 616B Fryer and 'Cut-N-Fry' systems.
| Size (diameter) | Part # (Plunger) | Part # (Cylinder) |
|---|---|---|
| 1½ inches (38.1 mm) | N-1007SSSx1-1/2 | N-1035L-Ax1-1/2 |
| 1⅝ inches (41.3 mm) | N-1007SSSx1-5/8 | N-1035L-Ax1-5/8 |
| 1¾ inches (44.5 mm) | N-1007SSSx1-3/4 | N-1035L-Ax1-3/4 |
| 1⅞ inches (47.6 mm) | N-1007SSSx1-7/8 | N-1035L-Bx1-7/8 |
| 2 inches (50.8 mm) | N-1007SSSx2 | N-1035L-Bx2 |
Smaller and larger sizes may be available for special order.
