Mounting Kits for Type N

For securely mounting your Type N cake donut depositor.

The Type N is designed to work with Belshaw's 616B / Type N Combo system.

For other situations, Type N has 3 mounting systems - either to your existing 616B fryer, or to a wall.

The Short Arm Column Mount attaches the depositor simply and easily to a 616B fryer, to form a 616B / Type N Combo system.

The Long Arm Column Mount attaches the depositor to any suitable fryer. You may need a stiffening plate (Bracket Plate kit P-1000) to hold the mounting kit. Consult with a Belshaw Support Technician before purchase.

The Wall Mount attaches your depositor to the wall behind your fryer. The installation must be very dependable and secure. If you move the fryer, you must re-install the Wall Mount. It is sometimes a good solution if a Type N depositor is combined with a different fryer.

A simple Lock Collar is supplied with both Mounting Kits to set your depositor height about 1¼ to 1½" above the shortening (30-40 mm). The optional Precision Height Adjuster is useful for making faster, more accurate height adjustments.

Part # N-1033

Type N Short-Arm Column Mounting Kit for 616B Fryer (as used by "Cut-N-Fry" system)

# N-1033 full extension (from the mounting point to the donut deposit, center-to-center)

22 inches (56 cm)

Part # N-1034

Type N Long-Arm Column Mounting Kit for other fryers

# N-1034 full extension (from the mounting point to the donut deposit, center-to-center)

32 inches (81 cm)

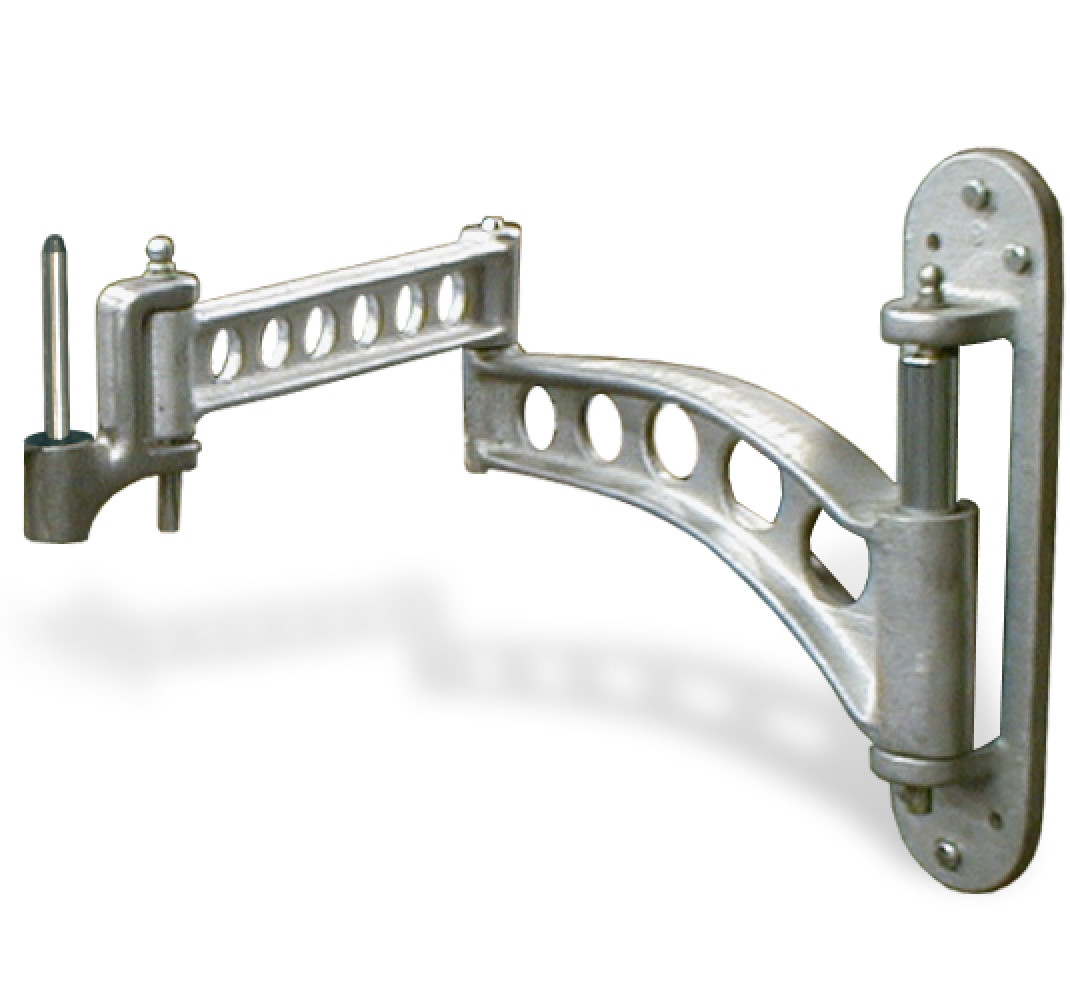

Part # N-1036

Wall Mounting Kit for Type N

# N-1036 full extension (from the mounting point to the donut deposit, center-to-center)

32 inches (81 cm)

Part # 0400

Precision Height Adjuster for Type B, F or N (Column Mounts only)
