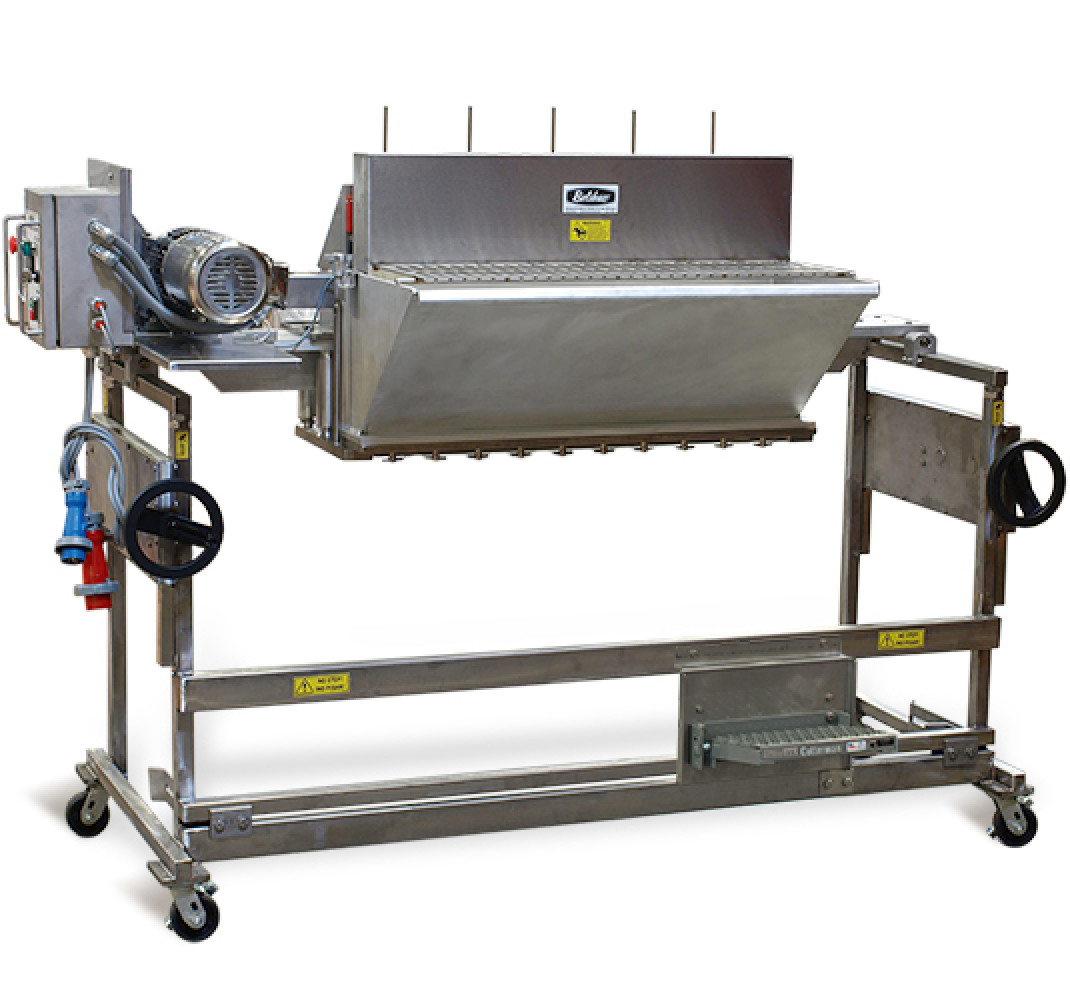

High Volume Industrial Depositor
The industry standard for depositing cake donuts. Compatible with High Volume Industrial systems, with Multi-Space and High Speed models available.
- MDDRF10 model deposits 10 donuts of any size into each fryer pocket.
- The MS (Multi-Space) option allows you to deposit 10 large, 12 medium, 15 small or 20 mini donuts, making efficient use of the full width of the fryer.
- The MSHS (Multi-Space High Speed) option has PLC control and drivetrain engineered to deposit up to 100 cycles/minute.
Depositors featured below are compatible with Belshaw High Volume Industrial fryers, with 42 inches frying width (1.07 m).
Depositors can also be manufactured with 12 to 24 plungers for fryers up to 50 inches frying width (1.27 m).
MDDRF10
10 donuts, any size up to 4¼" diameter (108 mm)
MS12, Multi-Space option
12 medium donuts, up to 3½" (89 mm) diameter
MS15, Multi-Space option
15 small donuts, up to 2¾" (70 mm) diameter
MS20, Multi-Space option
20 mini donuts up to 2⅛" (54 mm) diameter
MSHS (Multi-Space High Speed)
10, 12, 15 or 20 donuts per pocket with speed up to 100 cycles/minute
Certifications
NSF-169, BISCC
Compatibility
Worldwide
The MDDRF10 is an efficient choice for donuts larger than 3½" diameter (89 mm). To determine which model is best for your operation, always discuss with a Belshaw Industrial Sales Manager!

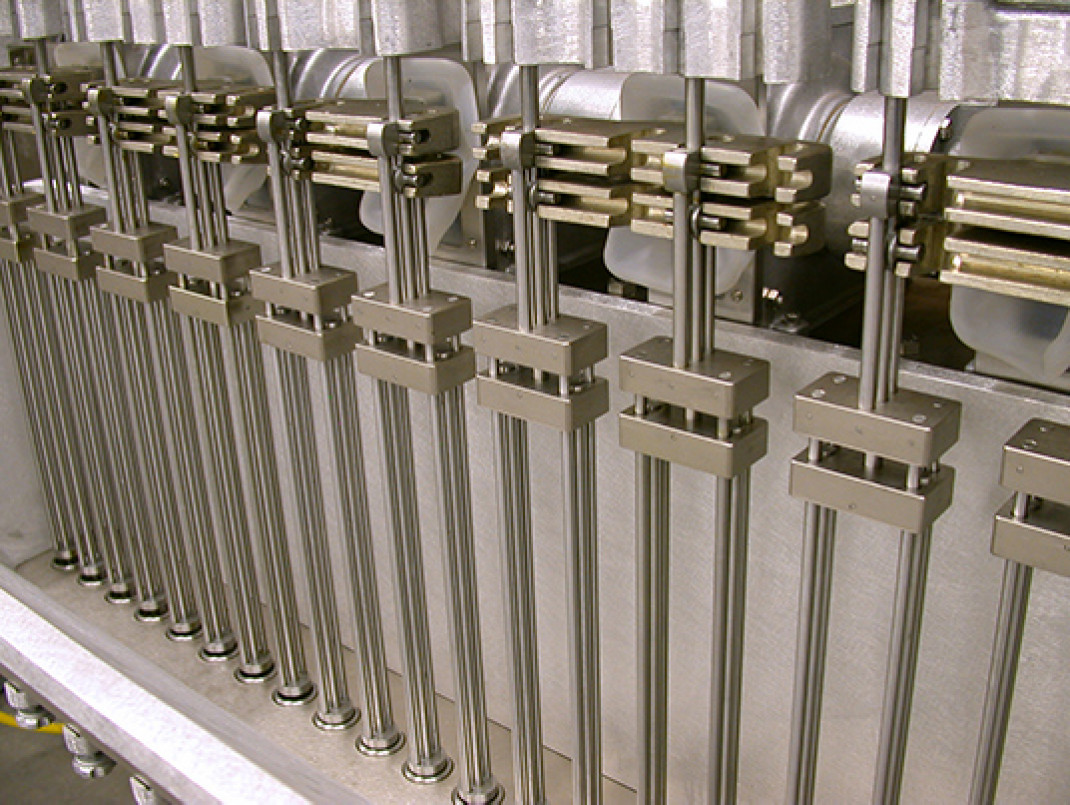

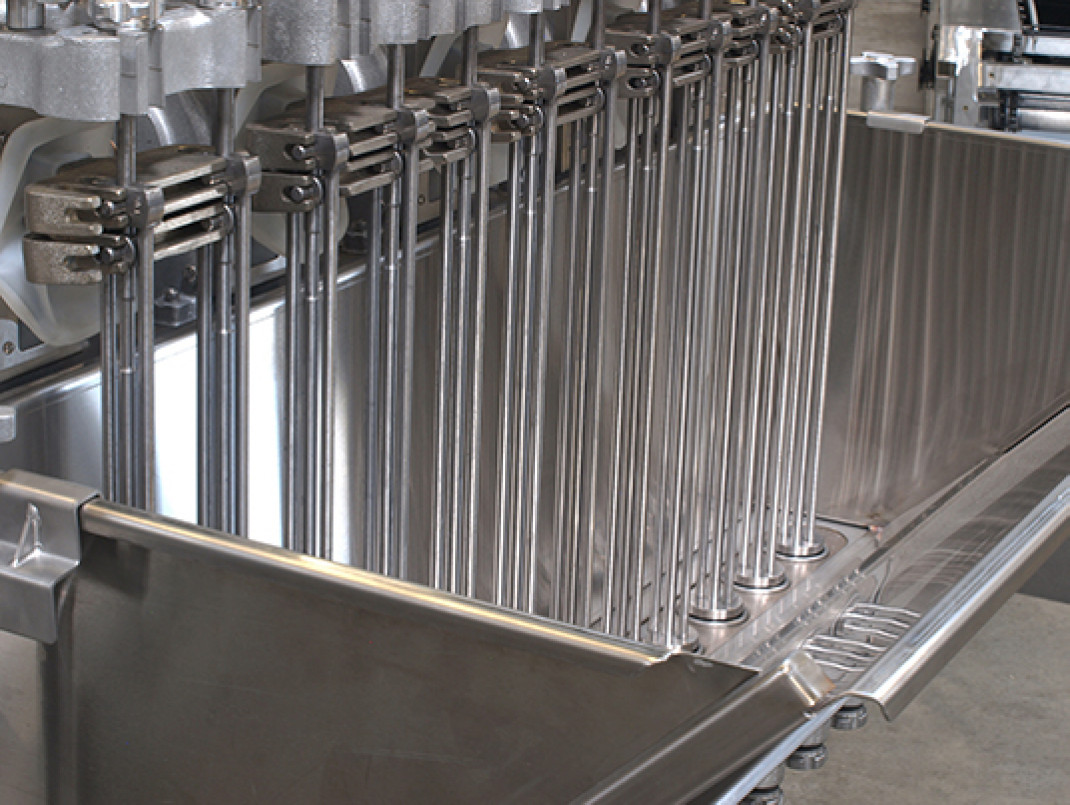

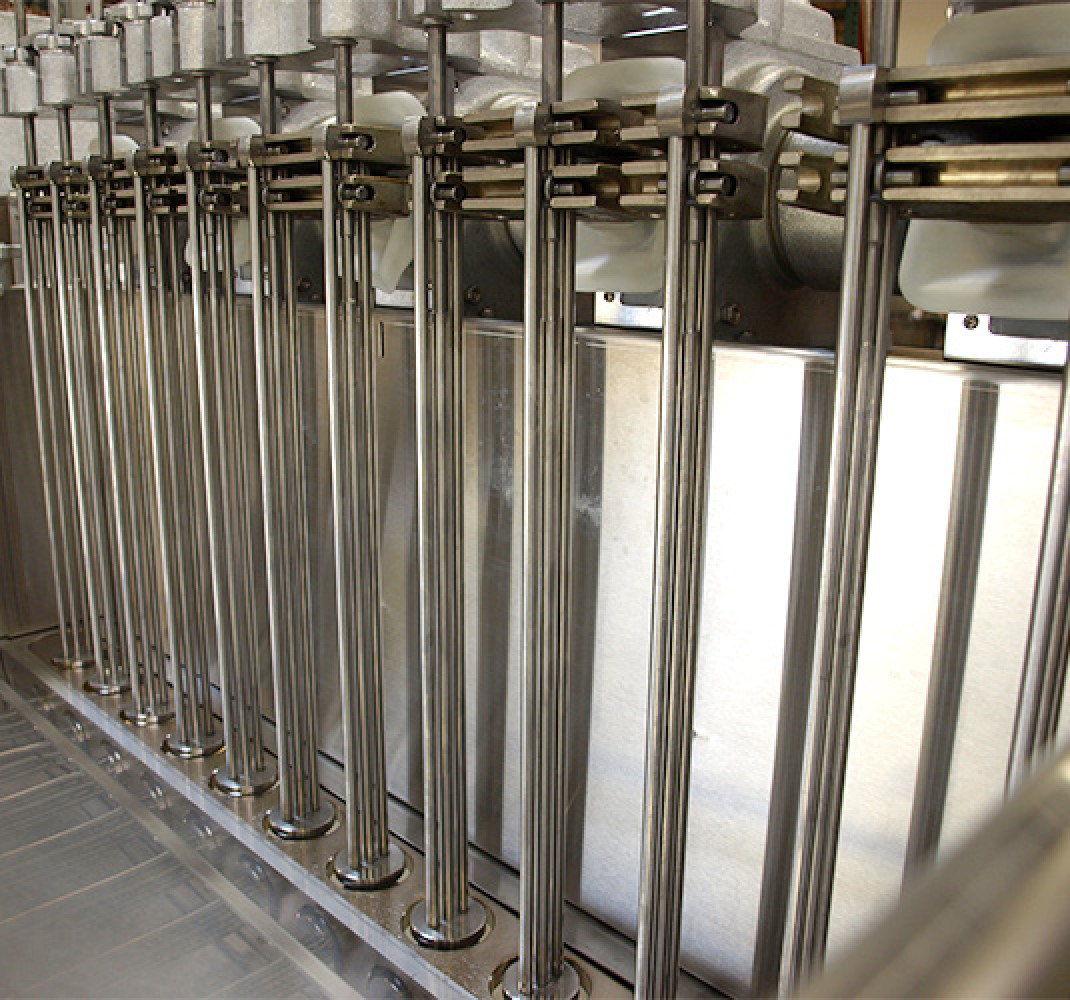

- Accepts all cake donut plungers, for ring, ball, stick, french cruller, krinkle (pon-de-ring) and 'old fashion' donuts.
- Deposit size can adjusted for larger or smaller donuts.

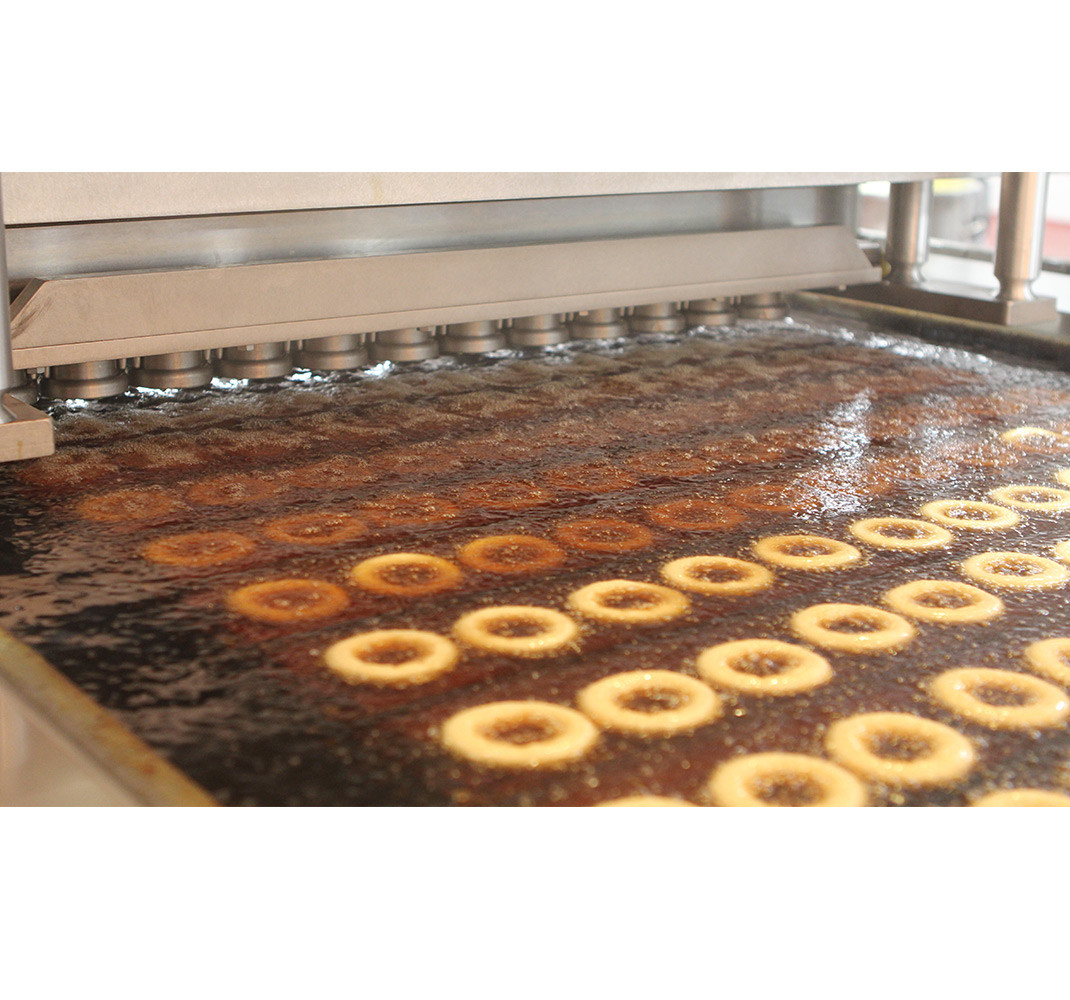

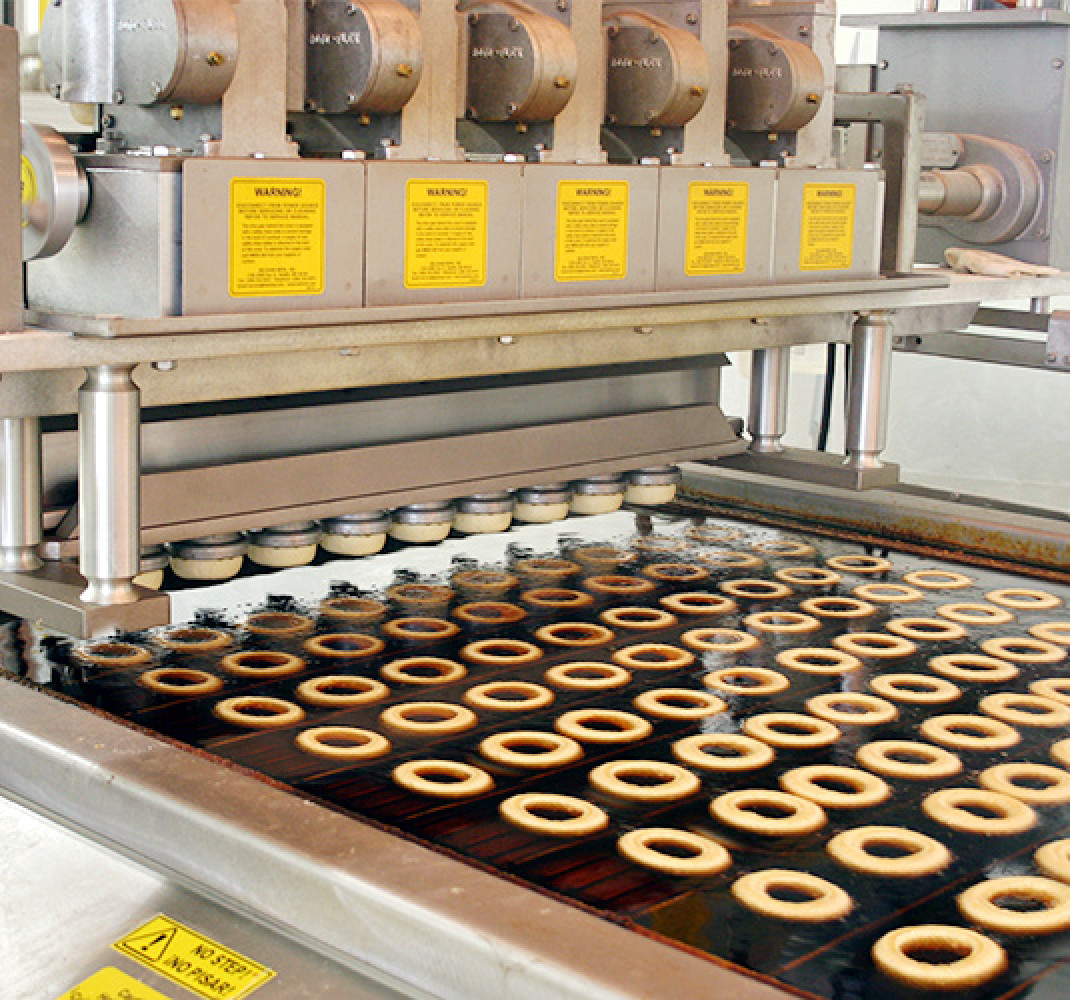

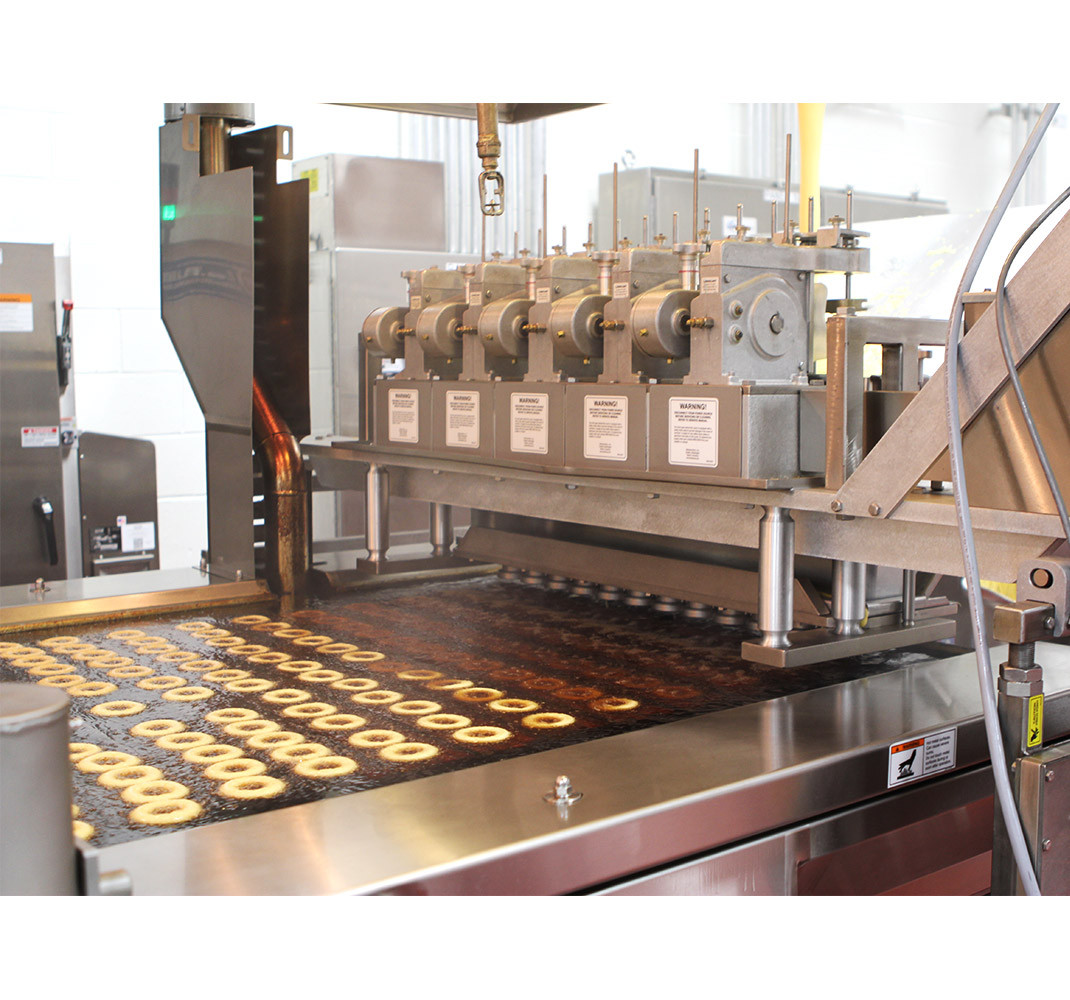

- Synchronizes with fryer to ensure deposits fall into the center of the fryer pocket.
- New high torque motor and robust, efficient drivetrain, for continuous stress-free operation.

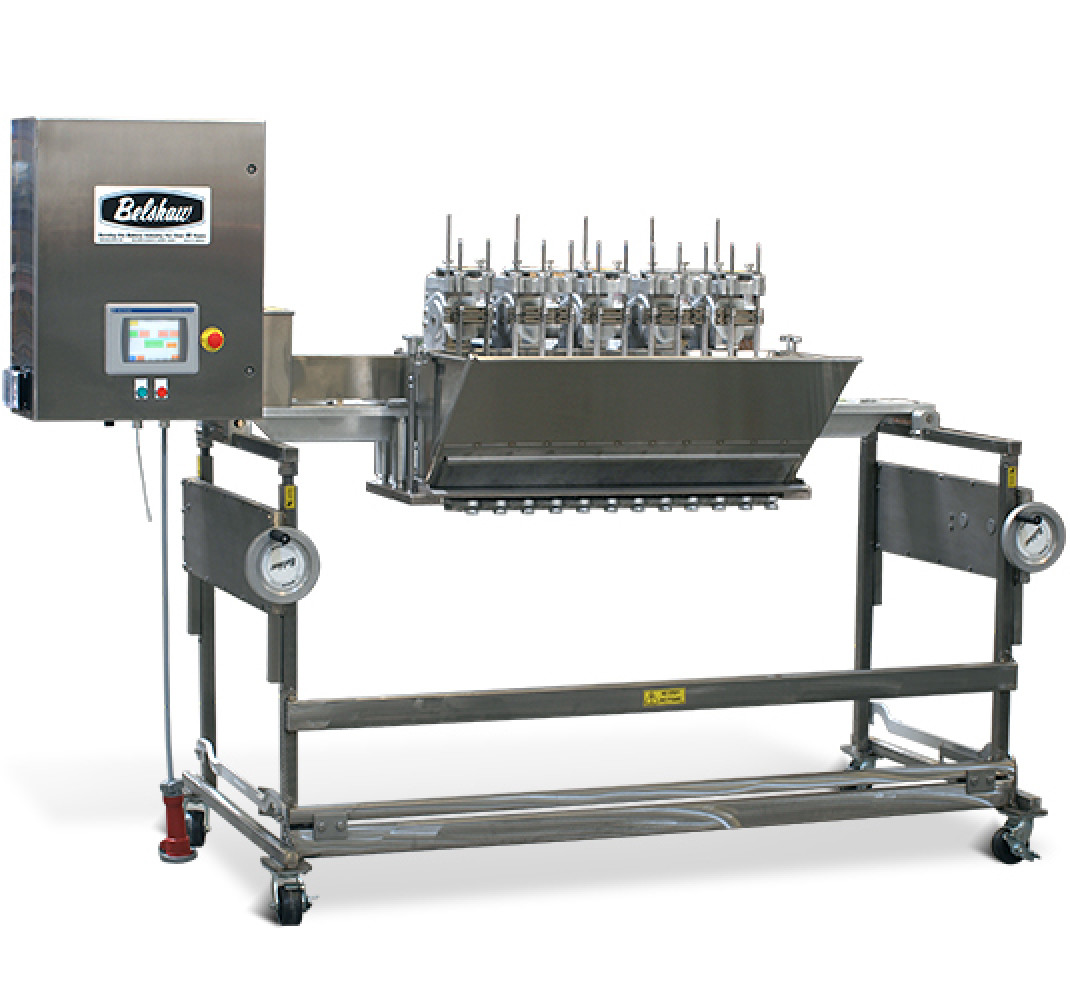

- Mobile Carrier with precision height adjusters and adjustable stops for accurate placement of depositor relative to fryer. Electric 'PowerLift' height adjuster also available.

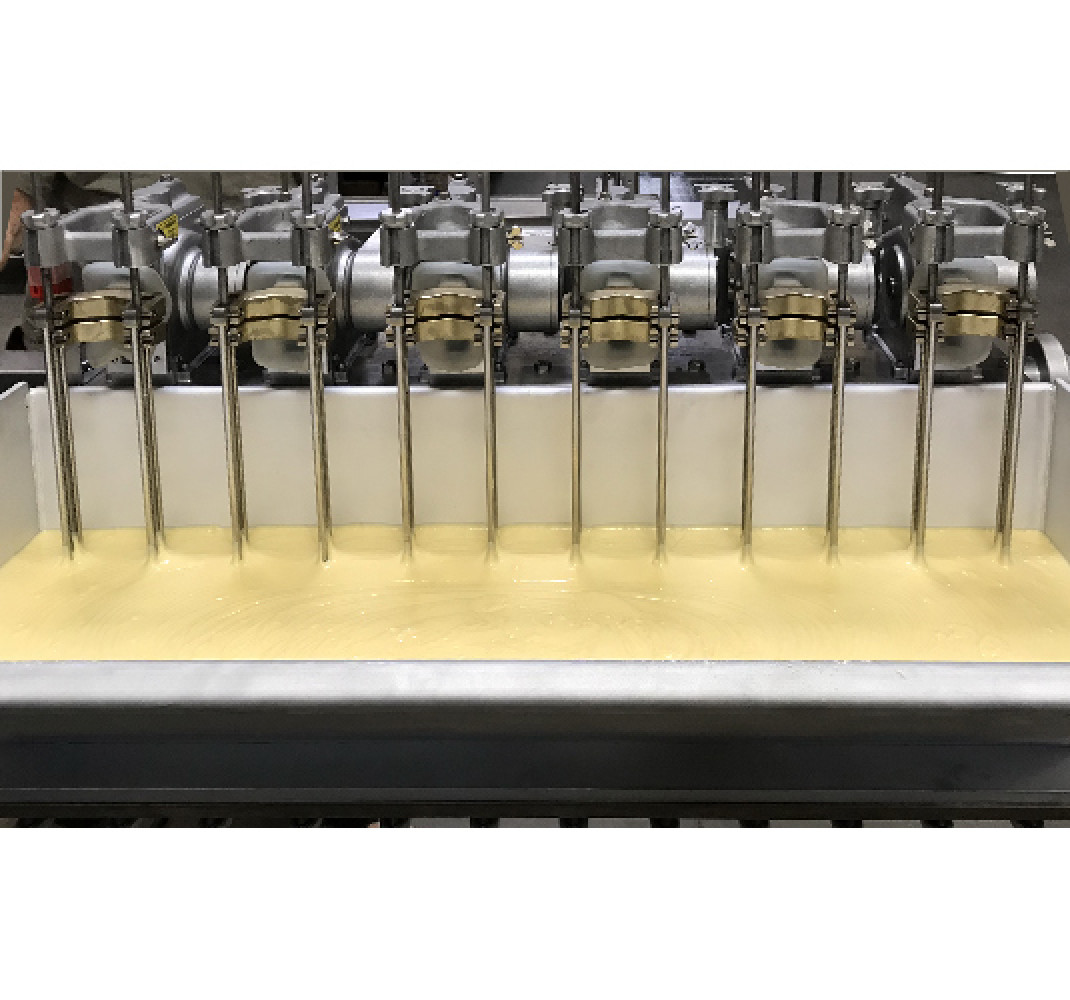

- Stainless steel, easy-clean removable hopper with approx 250 lbs. capacity (113 kg).

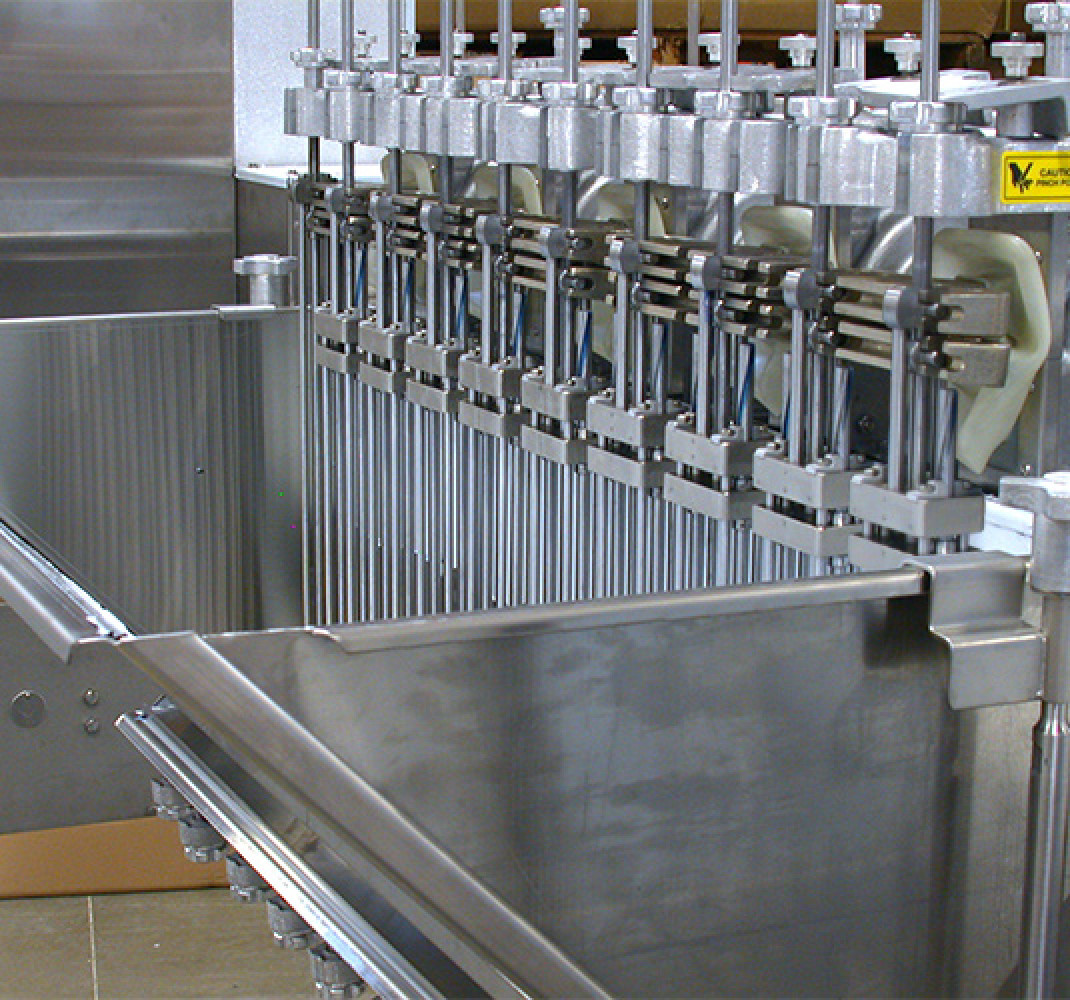

- Safety cover and safety grill to protect hands.
- Batter chute for filling hopper, with frame for resting a mixing bowl.
- Optional electronic counter.

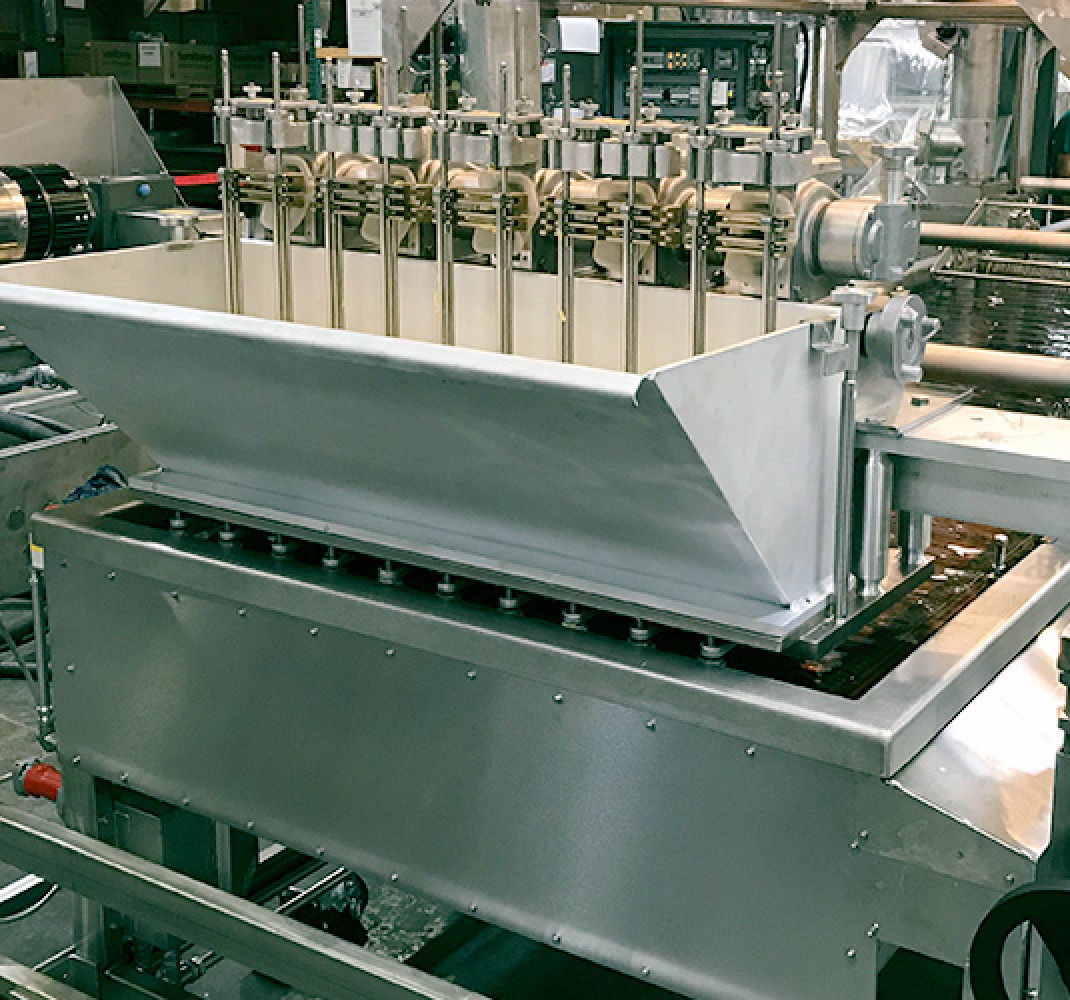

The Multi-Space depositor improves productivity for donuts 3½" diameter (89 mm) or smaller. To determine the best cake donut depositor for your operation, always discuss with a Belshaw Industrial Sales Manager!
- MS10-12-15-20 can be configured as below:
- 10 large donuts per pocket, up to 4¼" (108 mm) diameter.
- 12 medium donuts per pocket, up to 3½" (89 mm) diameter.
- 15 small donuts per pocket, up to 2¾" (70 mm) diameter.
- 20 mini donuts per pocket, up to 2⅛" (54 mm) diameter.
- Accepts all cake donut plungers, for ring, ball, stick, french cruller, krinkle (pon-de-ring) and 'old fashion' donuts.
- Deposit size can adjusted for larger or smaller donuts.
- Synchronizes with fryer to ensure deposits fall into the center of the fryer pocket.
- New high torque motor and robust, efficient drivetrain, for continuous stress-free operation.
- Mobile Carrier with precision height adjusters and adjustable stops for accurate placement of depositor relative to fryer. Electric 'PowerLift' height adjuster also available.
- Stainless steel, removable hopper with approx 250 lbs. capacity (113 kg).
- Safety cover and safety grill to protect hands.
- Batter chute for filling hopper, with frame for resting a mixing bowl.
- Optional electronic counter.

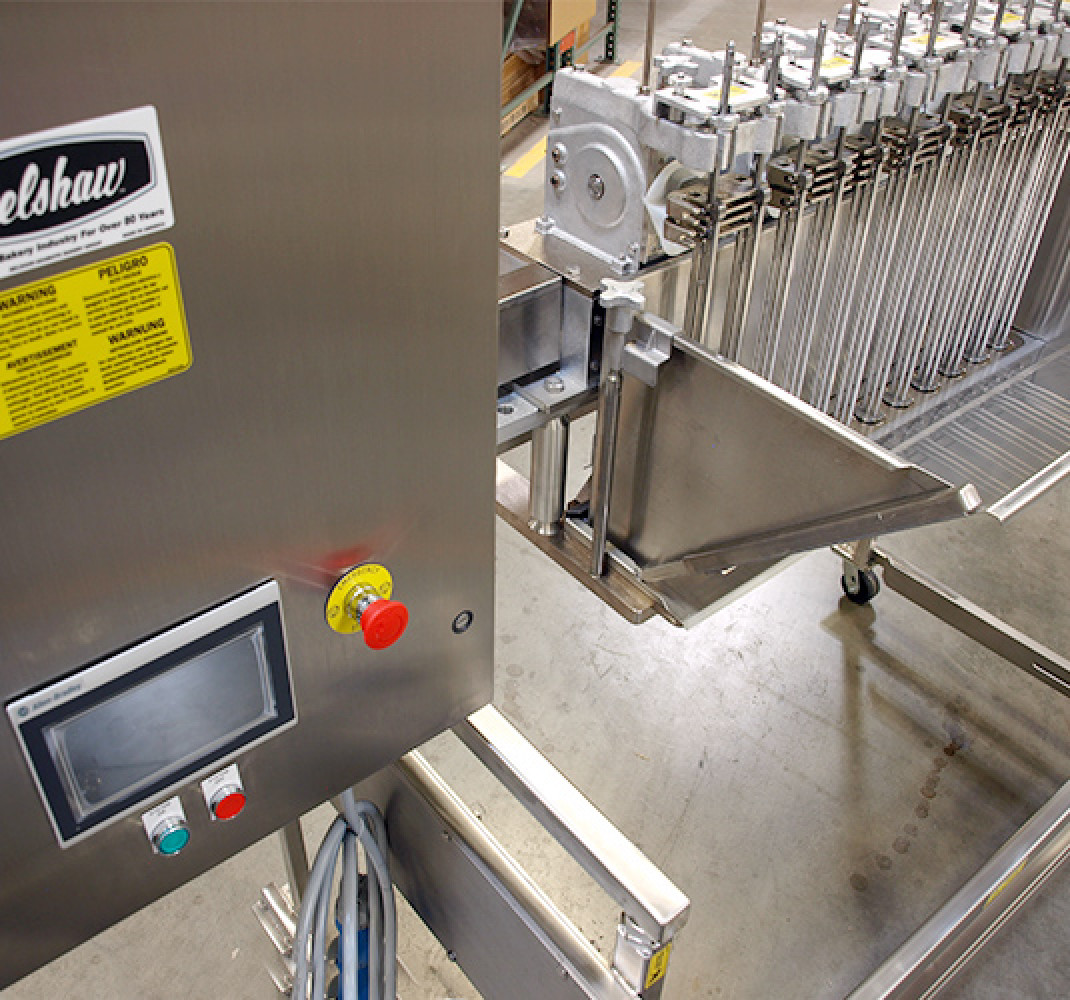

MSHS Multi-Space High Speed model is the most efficient choice for:
- Ease of operation (choose your product from a menu screen)
- Diagnostics from PLC control
- High deposit cycles per minute, up to 100 for mini donuts on very large fryers
- Durability with extended hours of operation
To determine which model is best for your operation, always discuss with a Belshaw Industrial Sales Manager!
- Flexible - can be configured for 10,12,15 or 20 deposits per cycle (large, medium, small or mini donuts).
- Up to 100 deposits per minute, when needed for mini donut production on large fryers.
- High torque motor and robust, efficient drivetrain, for continuous stress-free operation.
- Closed Loop Servo Motor Controls and a Dual Axis Motion Control System.

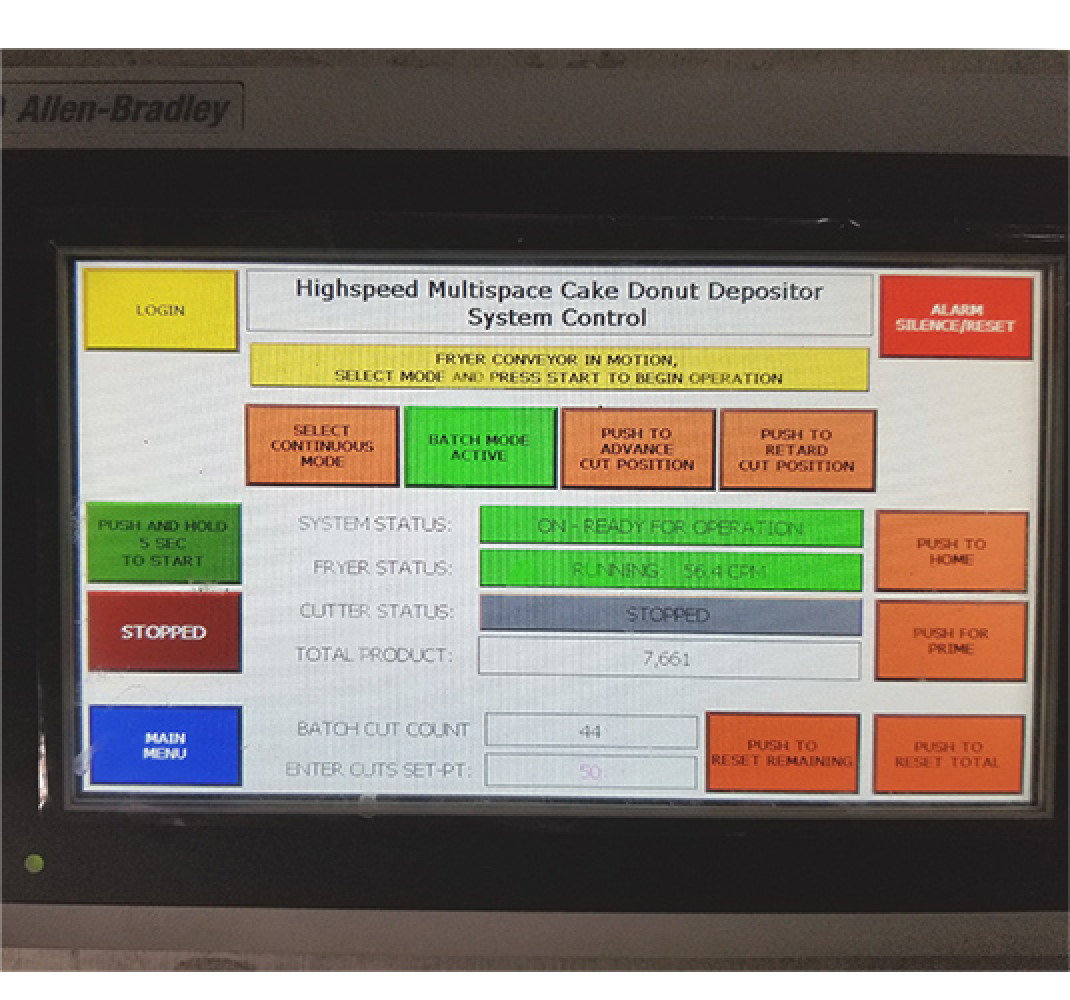

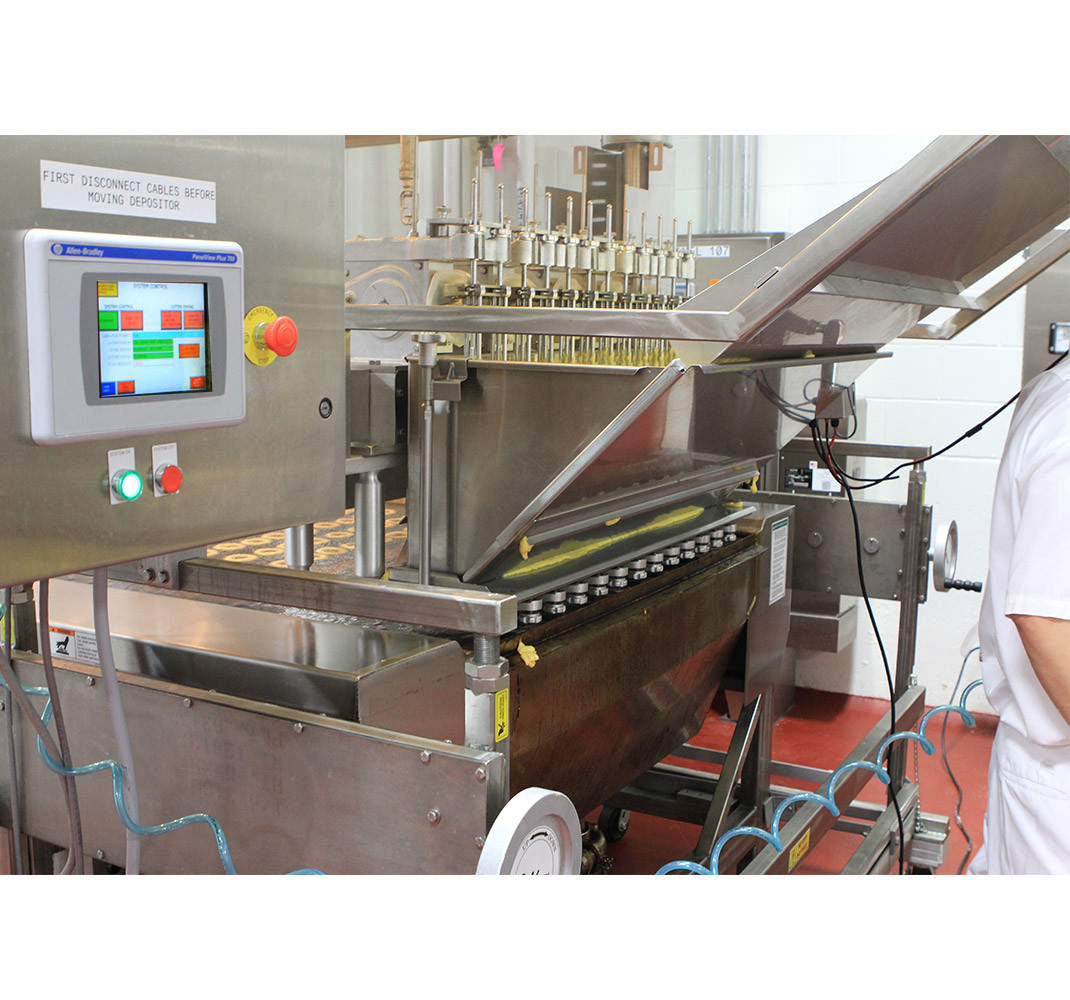

- Controlled by PLC with easy to use touch screen and menus.
- Accepts all cake donut plungers, for ring, ball, stick, french cruller, krinkle (pon-de-ring) and 'old fashion' donuts.
- Deposit size can adjusted for larger or smaller donuts.
- Real-time Electronic Advance/Retard – locates and synchronizes deposits precisely with fryer pockets.
- Deposit counter with automatic stop when predetermined count is reached.
- Mobile Lift Carrier with adjustable stops to locate depositor in precise position relative to fryer.
- Hopper capacity approximately 250 lbs (113 kg).
- Precision height adjusters. Electric 'PowerLift' height adjuster also available.
- Safety cover and safety grill to protect hands.
- Batter chute for filling hopper, with frame for resting a mixing bowl.
- Hopper safety guard and plunger safety guard
