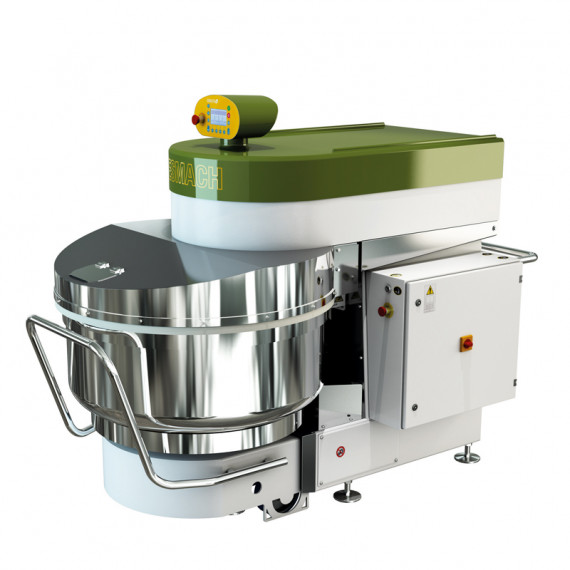

Esmach SPI-F Fixed Bowl Spiral Mixer
Fixed-bowl spiral mixers, beautifully engineered and crafted by Esmach in Italy.
The SPI-F series represents the pinnacle of spiral mixer technology from a company with a long history of mixers that bakers simply love to use. Expertly made in Italy, the home of great baking!
The mixer arm is geometrically perfect. It follows the bowl walls perfectly, and gives regular, soft and refined dough - even at minimum quantities. A well-balanced ratio between the rotation of the bowl and the spiral arm rotation make for soft, delicate dough treatment. The dough gradually develops by gentle lengthening and pulling. It all leads to reduced mixing times, lower dough temperatures - and dough quality that other mixers can only dream about.
The SPI-F offers an optional on-board water meter. You can set the amount of water required and the temperature required, and it dispenses automatically and accurately - a huge bakery time saver.
For retail and industrial bakeries, pizzerias and confectionery industries.
Bowl type
Fixed
10 bowl sizes, by volume
42 - 430 quarts (50 - 450 liters)
10 bowl sizes, by dough capacity
65 to 650 lbs (30 to 300 kg)
Certification
ETL
Compatibility
USA-Canada-Mexico-Central/South America
To find out more about Esmach SPI-F mixers:
- Check the "Resources" below for brochure, specifications and video.
- Visit the Mixers section of Esmach's web site.
- Contact info@belshaw.com for a quote or further information. You may be surprised how affordable a new Esmach mixer is!
- Optimum balance between bowl rotation and spiral arm enabling soft and gentle dough kneading.
- Perfectly shaped spiral arm rotation inside the bowl.
- Accurate bowl and spiral arm speed for excellent dough kneading and its processing through stretching and lengthening, allowing continuous and constant dough kneading with a significant reduction of the processing time and limited heating up of the dough.
- Outer paneling painted with an anticorrosion double epoxy powder coating, suitable for food contact.
- Stability and levelling on the floor assured by three casters with blocking wedges used for holding the machine while cleaning it deeply in the area underneath the frame.
- Transparent bowl lid suitable for food contact in compliance with hygiene and safety regulations.
- Electric panel in an IP55 protection box against flour dust and water sprays.

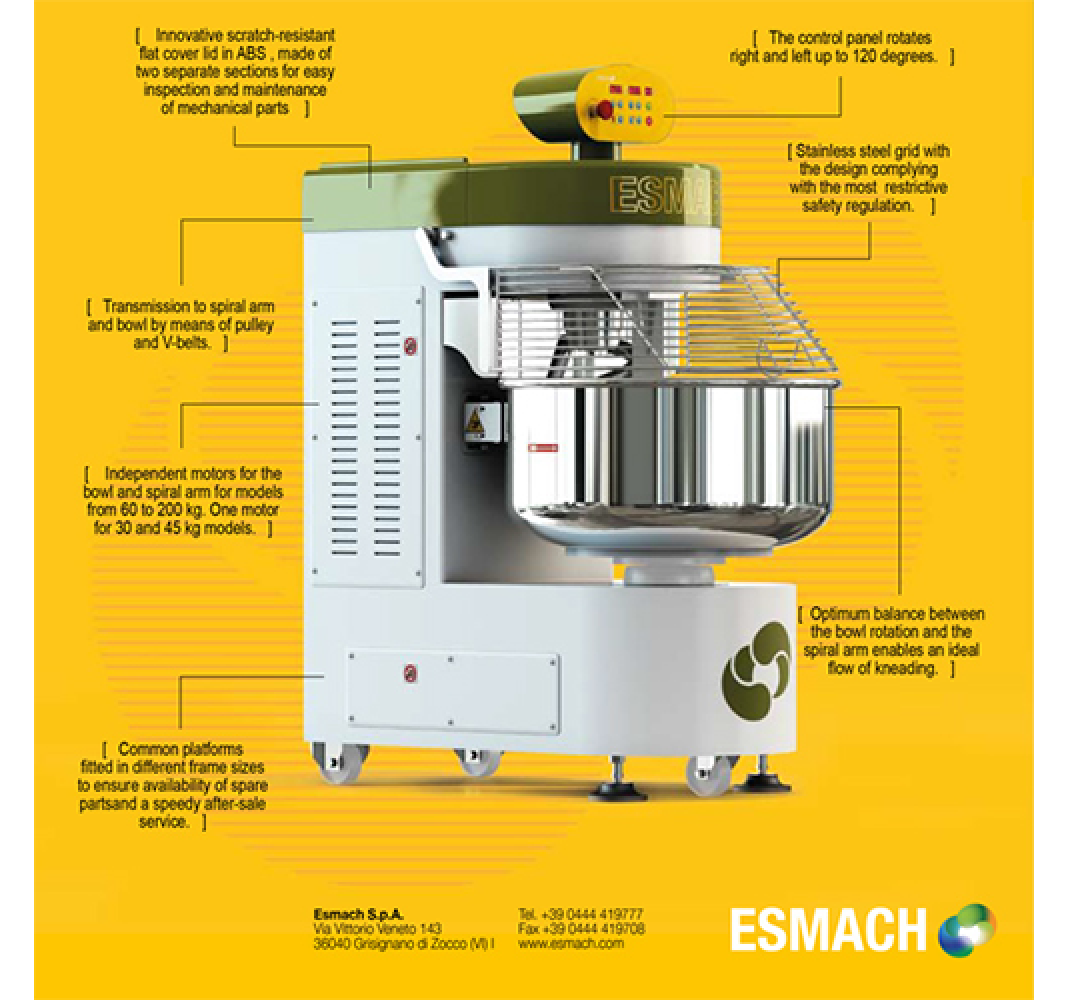

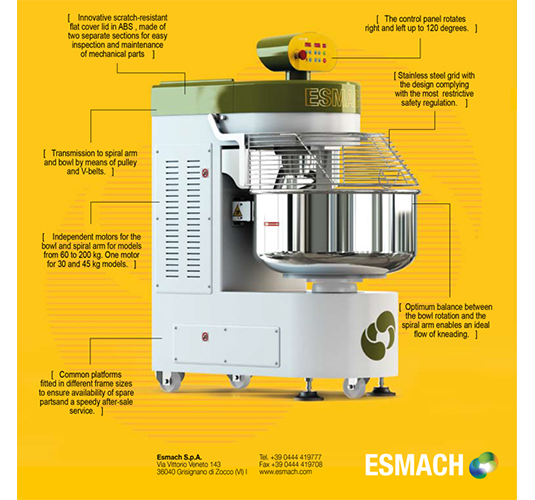

- Direct power transmission for the rotation of both spiral arm and bowl generated by trapezoidal drive belts on multi-groove pulleys.
- Independent motors for bowl and spiral arm in the models from 60 to 300 kg. Only one motor for 30 and 45 kg models.
- Two working speeds for bowl and spiral arm. Reversal of bowl rotation at first speed (except 30 and 45 kg models).
- Functional and innovative command console with rotation in both left and right directions and with an operative angle of 120°, allowing ideal ergonomic comfort even in narrow working rooms.
- Manual or automatic selection and monitoring of working cycle through a membrane keyboard panel. Storage for 9 recipes.
To find out more about Esmach SPI-F mixers:
- Check the "Resources" below for brochure, specifications and video.
- Visit the Mixers section of Esmach's web site,
- Contact info@belshaw.com for a quote or further information. You may be surprised how affordable a new Esmach mixer is!
- Trolley for moving the mixer when needed.
- Lid + grid: stainless steel grid in addition to the transparent lid.
- Water dispenser directly on the bowl with quantity meter, mixer for manual temperature and temperature sensor on display.
- In-bowl dough temperature detector with infrared sensor, visualization on display and stop option of the working process or immersion temperature detector.
- External temperature probe, also shown on the electronic display.
- Special “AI” version, touch screen with WiFi, LAN, and Bluetooth. No more problems with technical assistance and online diagnostics. Everything becomes simple, intuitive and smart. (This is the 2nd of two control panels shown on this page).
