C10-24 | C14-24 Fryer

6 donuts wide, 10 feet or 14 feet long (3.05 m or 4.27 m), either gas or electric heat.

Two lengths available, with space for 6 large donuts per pocket, designed for centralized production of all varieties of donuts. Available with either premix gas or electric heat, each fryer is perfectly synchronized with all other parts of the donut line. Accurate heat and speed controls ensure a consistent fry for every donut. Numerous safety and convenience features, in an industrial-grade fryer that will produce consistent product for many years.

Frying width

6 donuts wide, 24 inches (610 mm)

Frying length C10-24

10 feet (3.05 m)

Frying length C14-24

14 feet (4.27 m)

Capacity C10-24

4488 pieces per hour (374 dozen) @ 110s fry time

Capacity C14-24

6564 pieces per hour (547 dozen) @ 110s fry time

Compatibility

Worldwide

Certification

BISSC

Features

Features

With options like multiple turners, submergers, left-right operation, and continuous filtration, Belshaw can configure a state-of-the-art fryer that closely matches your centralized production needs. C10-24 and C14-24 fryers incorporate a remote console PLC touchscreen and premix gas heat.

4½ inch (114 mm) pocket spacing for each donut. 3" also available for mini donuts.
Two heat zones on all models.
Remote control console with PLC and touchscreen.
Premix gas standard for gas fryers.
Gas heated models include exhaust damper system with stack, heat shield, barometric damper, draft inducer, and proving switch.
Variable speed, synchronized with Proofer and Cake Donut Depositor.
Exit chute (standard) or exit conveyor (optional).
Electric hoist for rapid lifting and lowering of conveyor
Left or right configuration, as preferred.

Automatic shortening melter/leveler. Maintains exact shortening level.

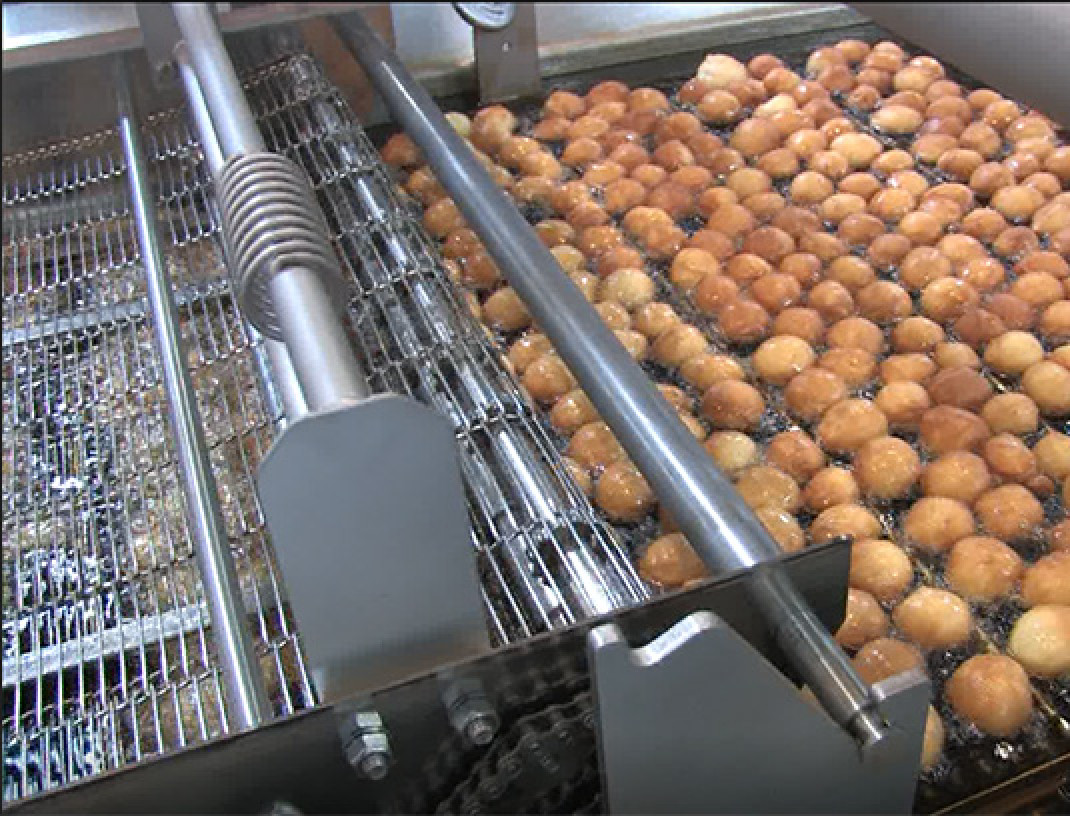

Optional partial-length submerger, for ball shaped donuts.
Requires Belshaw TC30 Transfer Conveyor if used for both Cake and Yeast Raised donuts. This bridges the space used by the Cake Donut Depositor.
Requires Belshaw CSF Shortening Filter for single flush filtration.
Continuous filtration option available using OS300 Filter system.
For required and optional donut line components, see Century C10-24 | C14-24 Donut System.
